Product Description

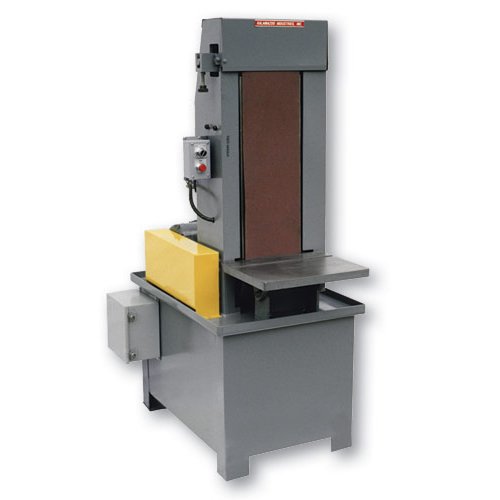

S10D 10″ belt sander dry belt sander comes standard with a 10HP 3PH 220v or 440V (specify voltage at time of order) motor.
This product has applications in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.
10″ x 90″ sanding belt and will also accept woven conditioning belts for polishing!
Large 10″ x 28″ platen work area for sanding large surface areas. Get parts FLAT!
10 hp motor for great power, no stalling! Replaceable platen!
This unit is designed and MADE IN THE USA SINCE 1960!
Available Horizontal (S10HD) and WET (S10HW), see below.
10″x90″ belt, 3400 SFPM
10HP, 3phase, TEFC motor. Magnetic controls with jog switch.
Steel platen-10″x29″
Work Surface-10″x28″
Cast Iron Table-14″x18″
Table Tilt 45 deg. down, 15 deg. up
Air Tension on Belt, 0 55 PSI Reqd.
24 volts @ switch, 10 gal tank & coolant pump.
1160 lbs.
Dimensions: S10D,S10W , L39″ x W28″ x H70“
Dimensions: S10HD, S10HW, L46″ x W30″ x H35″
Model: S10D: 10″ x 90″ DRY vertical belt, 10 hp, 3 phase, 220/440/60Hz
Model: S10W: WET vertical 10″x 90″ belt, 10 hp, 3 ph, 24 volt@ switch
220/440 volt 60 hz., with 10 gal tank & coolant pump.
Model: S10HD: Horizontal DRY, 10″x90″, 10 hp, 220/440/60Hz
Model: S10HW: Horizontal WET, 10″x90″,10 hp, 220/440/60Hz
Available in 50 hz, and 575 volt!
