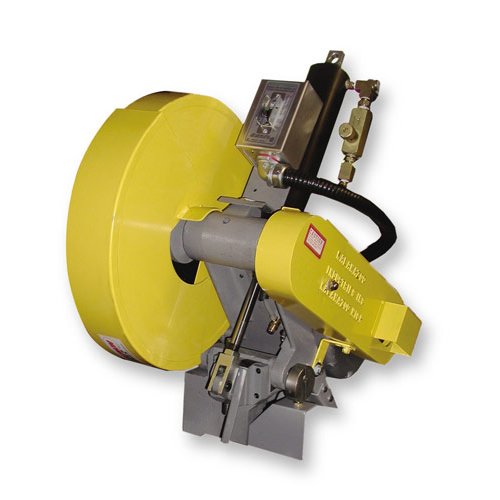

HS14ASPH 14″Semi-Auto Non-Ferrous Saw Head is outfitted with a 5HP 1PH, 220V (only) or 3PH, 220V or 440V (specify voltage).
Mount theHS14ASPH 14″Semi-Auto non-ferrous saw head this saw head to your machine, fixtures for fast cutting of aluminum,brass!
This high speed non-ferrous saw can use a current saw base or a base that you custom built for your application!
Available with power head to manual head.
Houses either 12″ or 14″ non-ferrous high speed blade in a retractable clam shell guard!
All factory parts are replaceable no matter the age of the saw!
These products have application in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments that handle non-ferrous materials.
Create multiple head machines , bolt them where you need them!
Non-ferrous arm assembly
Air/oil down feed ,0-12 fpm
5 hp,3 ph (220/440 volt 60 hz) or 1PH, 220V (only)
OSHA guard for carbide blades
1″ arbor, LH thd.
Spindle RPM 4400
4 bolt mount
Magnetic on/off switch
Optional: metered drip system (call for pricing!)
Please specify voltage at time of order
Wt: 240 lbs
