Product Description

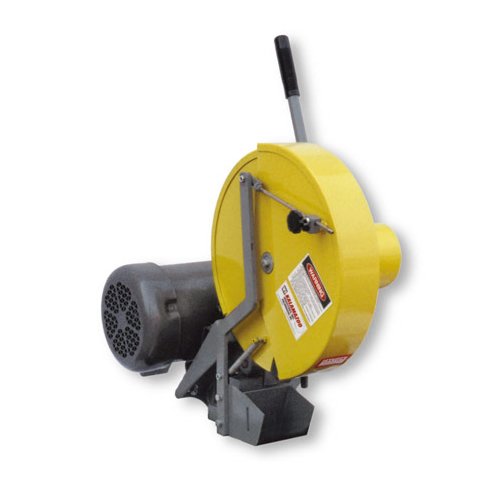

HS14, 14″ Non-Ferrous saw comes with a powerful 5HP 1PH, 200V (only) or 3PH, 220V or 440V (specify) TEFC motor.
These products have application in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments that work with non-ferrous metals.
Metered drip systems available. CALL FOR PRICING!
Manufactured to house a 14″ non-ferrous saw blade.
14″ Non-ferrous straight cut saw for cutting ALUMINUM and other non-ferrous materials.
5HP, 3ph 220/440 volt motor.
3450RPM motor, 4400 spindle speed.
Cast iron base, trunnion and arm.
OSHA safety clamshell wheel guard.
Mag. switch.
1″ spindle, sealed ball bearings
Two easy-set screw vises to hold work on both sides.
Opens 5″
Capacities: 4″ square, round and shapes. 3″ solids.
Options: PH-14 power down feed
#12L steel stand
AV-18 air vises
240 lbs.
Model: HS14-1 5 hp ,1 ph, 220 volt 60 hz.
Model: HS14-3 5 hp , 3 ph, 220/440 volt 60 hz
Model: HS14DC 5 hp , 3 ph 220/440 volt 60 hz 1300RPM @ spindle.
These products have application in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments that work with non-ferrous metals.
Metered drip systems available. CALL FOR PRICING!
Manufactured to house a 14″ non-ferrous saw blade.
14″ Non-ferrous straight cut saw for cutting ALUMINUM and other non-ferrous materials.
5HP, 3ph 220/440 volt motor.
3450RPM motor, 4400 spindle speed.
Cast iron base, trunnion and arm.
OSHA safety clamshell wheel guard.
Mag. switch.
1″ spindle, sealed ball bearings
Two easy-set screw vises to hold work on both sides.
Opens 5″
Capacities: 4″ square, round and shapes. 3″ solids.
Options: PH-14 power down feed
#12L steel stand
AV-18 air vises
240 lbs.
Model: HS14-1 5 hp ,1 ph, 220 volt 60 hz.
Model: HS14-3 5 hp , 3 ph, 220/440 volt 60 hz
Model: HS14DC 5 hp , 3 ph 220/440 volt 60 hz 1300RPM @ spindle.
