Product Description

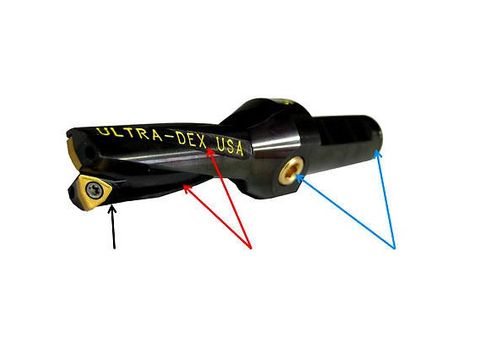

Steel 4xD Indexable Drill with a .968″ Diameter 3.918″ Drill Depth .750″ Shank Length to hold (2) WCMX 21.52 Coolant Thru
Product Specs
BD (Body Diameter) 1.22
DC (Cut Diameter) 0.968
DCONms (Connection Diameter) 0.75
L (Overall Length) 6.763
LF (Functional Length) 3.918
LPR (Protruding Length) 4.763
LS (Length of Shank) 2
LU (Usable Length) 3.872
