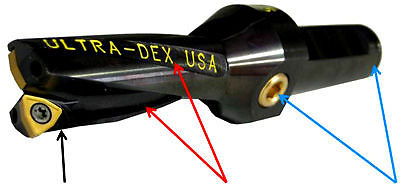

Indexable Drill .844" Coolant Thru 2xD Shank Drilling
Product Description
Steel 2xD Indexable Drill with a .844″ Diameter 1.850″ Drill Depth .750″ Shank Length to hold (2) WCMX 21.52 Coolant Thru
Product Specs
BD (Body Diameter) 1.22
DC (Cut Diameter) 0.844
DCONms (Connection Diameter) 0.75
L (Overall Length) 4.81
LF (Functional Length) 1.85
LPR (Protruding Length) 2.81
LS (Length of Shank) 2
LU (Usable Length) 1.688
Product Specs
BD (Body Diameter) 1.22
DC (Cut Diameter) 0.844
DCONms (Connection Diameter) 0.75
L (Overall Length) 4.81
LF (Functional Length) 1.85
LPR (Protruding Length) 2.81
LS (Length of Shank) 2
LU (Usable Length) 1.688
