Indexable Drill .687" Coolant Thru 4xD Shank Drilling
Product Description

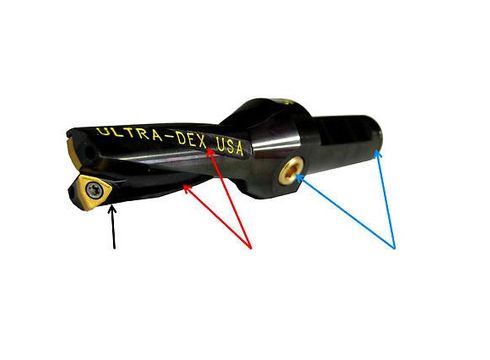

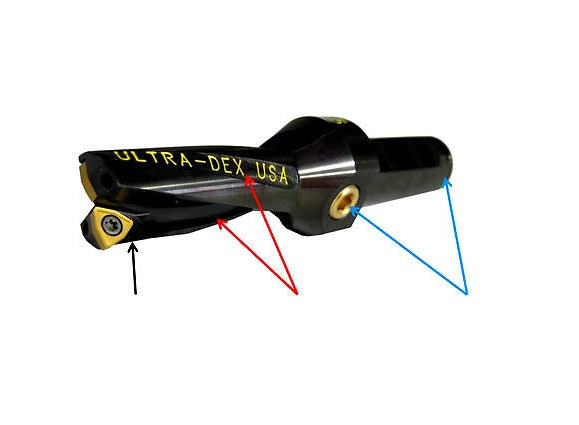

Steel 4xD Indexable Drill with a .687″ Diameter 2.878″ Drill Depth .625″ Shank Length to hold (2) WCMX 1.81.52 Coolant Thru

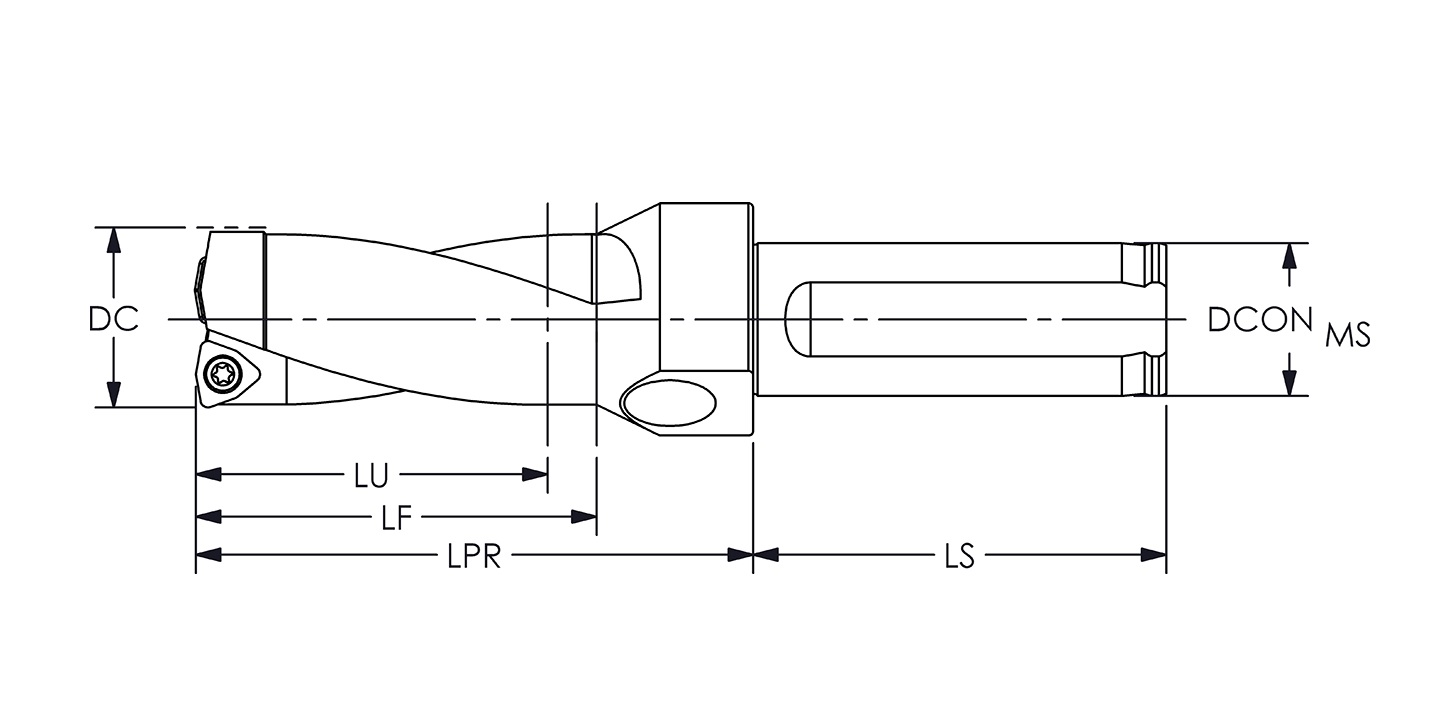

Product Specs
BD (Body Diameter) 0.987
DC (Cut Diameter) 0.687
DCONms (Connection Diameter) 0.625
L (Overall Length) 5.407
LF (Functional Length) 2.878
LPR (Protruding Length) 3.72
LS (Length of Shank) 1.687
LU (Usable Length) 2.748
Product Specs
BD (Body Diameter) 0.987
DC (Cut Diameter) 0.687
DCONms (Connection Diameter) 0.625
L (Overall Length) 5.407
LF (Functional Length) 2.878
LPR (Protruding Length) 3.72
LS (Length of Shank) 1.687
LU (Usable Length) 2.748
