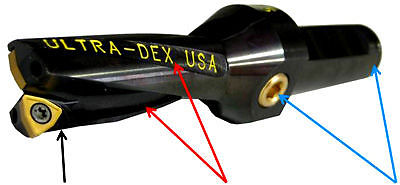

Indexable Drill .500" Coolant Thru 2xD Shank Drilling

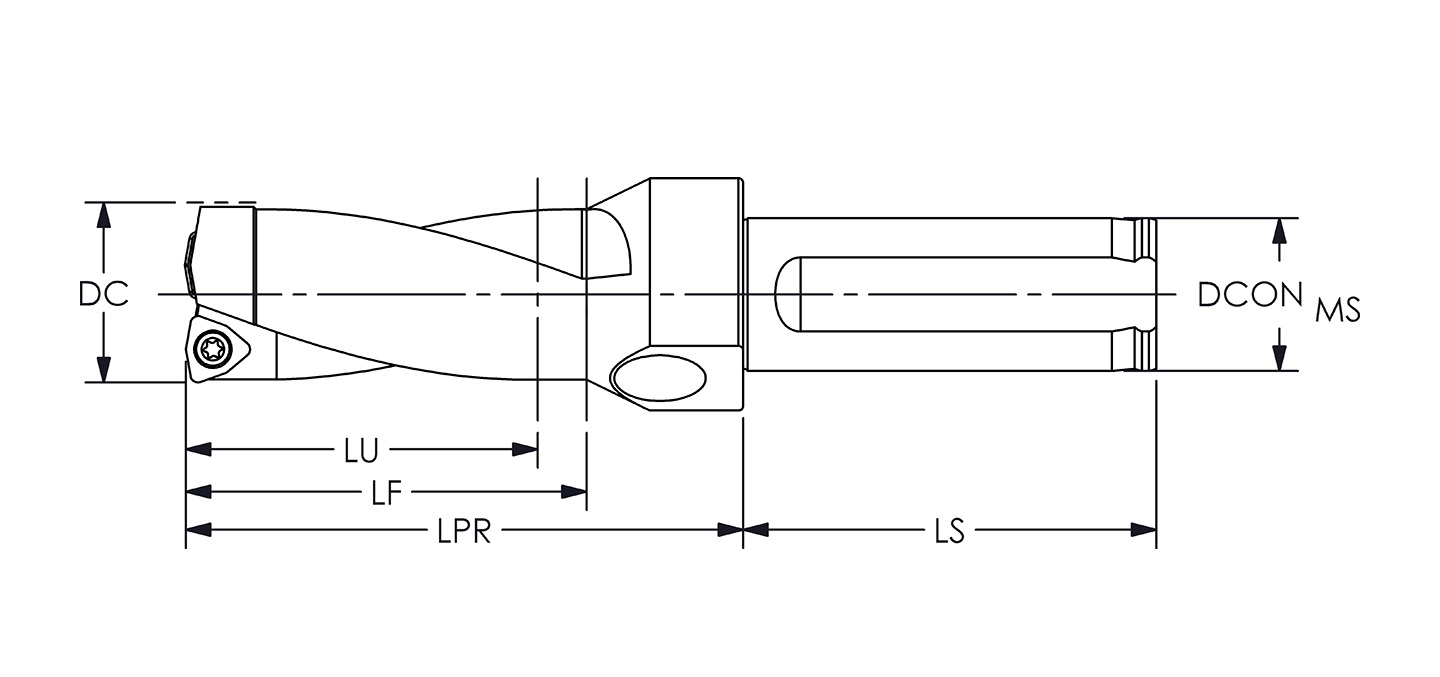

BD (Body Diameter) - 0.97

DC (Cut Diameter) - 0.468

DCONms (Connection Diameter) - 0.625

L (Overall Length) - 3.967

LF (Functional Length) - 1.31

LPR (Protruding Length) - 2.28

LS (Length of Shank) - 1.687

LU (Usable Length) - 0.936

ZcEff (Cutting Edge Count Effective) - 1

ZC (Cutting Edge Count) - 2

Coolant Thru - YES

UM (Unit of Measure) - Imperial

Insert - WCMT 1.211

Insert Screw - MTS-184

Wrench - T-6-S
