Product Description

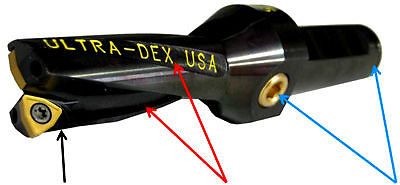

Steel 2xD Indexable Drill with a 2.375″ Diameter 4.840″ Drill Depth 1.500″ Shank Length to hold (2) WCMX 433 Coolant Thru
Product Specs
BD (Body Diameter) 2.47
DC (Cut Diameter) 2.375
DCONms (Connection Diameter) 1.5
L (Overall Length) 8.562
LF (Functional Length) 4.84
LPR (Protruding Length) 5.687
LS (Length of Shank) 2.875
LU (Usable Length) 4.75
Product Specs
BD (Body Diameter) 2.47
DC (Cut Diameter) 2.375
DCONms (Connection Diameter) 1.5
L (Overall Length) 8.562
LF (Functional Length) 4.84
LPR (Protruding Length) 5.687
LS (Length of Shank) 2.875
LU (Usable Length) 4.75
