Product Description

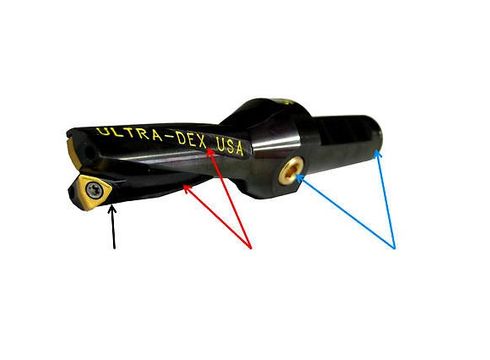

Steel 4xD Indexable Drill with a 1.094″ Diameter 4.728″ Drill Depth 1.000″ Shank Length to hold (2) WCMX 2.522 Coolant Thru
Product Specs
BD (Body Diameter) 1.45
DC (Cut Diameter) 1.094
DCONms (Connection Diameter) 1
L (Overall Length) 8.06
LF (Functional Length) 4.728
LPR (Protruding Length) 5.685
LS (Length of Shank) 2.375
LU (Usable Length) 4.376
