Product Description

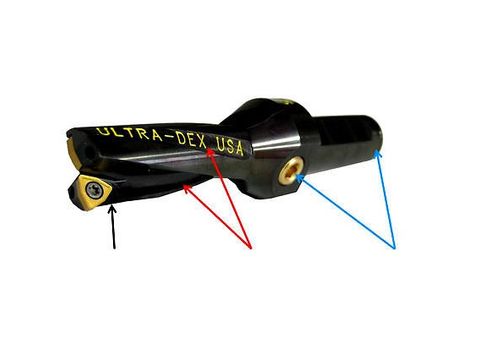

Steel 4xD Indexable Drill with a 1.625″ Diameter 6.757″ Drill Depth 1.250″ Shank Length to hold (2) WCMX 32.52 Coolant Thru
Product Specs
BD (Body Diameter) 1.97
DC (Cut Diameter) 1.625
DCONms (Connection Diameter) 1.25
L (Overall Length) 10.419
LF (Functional Length) 6.757
LPR (Protruding Length) 7.8
LS (Length of Shank) 2.619
LU (Usable Length) 6.5
