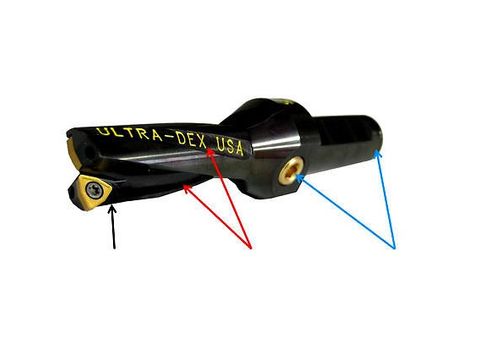

Indexable Drill 1.562" Coolant Thru 4xD Shank Drilling

Steel 4xD Indexable Drill with a 1.562″ Diameter 6.695″ Drill Depth 1.250″ Shank Length to hold (2) WCMX 32.52 Coolant Thru

Product Specs

BD (Body Diameter) 1.97

DC (Cut Diameter) 1.562

DCONms (Connection Diameter) 1.25

L (Overall Length) 10.419

LF (Functional Length) 6.695

LPR (Protruding Length) 7.8

LS (Length of Shank) 2.619

LU (Usable Length) 6.248
