Product Description

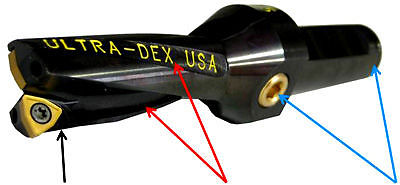

Steel 2xD Indexable Drill with a 1.187″ Diameter 2.532″ Drill Depth 1.000″ Shank Length to hold (2) WCMX 2.522 Coolant Thru
Product Specs
BD (Body Diameter) 1.45
DC (Cut Diameter) 1.187
DCONms (Connection Diameter) 1
L (Overall Length) 5.61
LF (Functional Length) 2.532
LPR (Protruding Length) 3.235
LS (Length of Shank) 2.375
LU (Usable Length) 2.374
