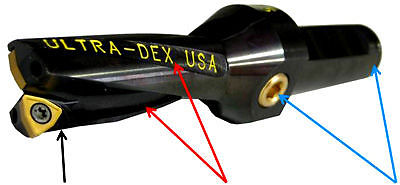

Indexable Drill 1.625" Coolant Thru 2xD Shank Drilling

Steel 2xD Indexable Drill with a 1.625″ Diameter 3.375″ Drill Depth 1.250″ Shank Length to hold (2) WCMX 32.52 Coolant Thru

Product Specs

BD (Body Diameter) 1.97

DC (Cut Diameter) 1.625

DCONms (Connection Diameter) 1.25

L (Overall Length) 7.045

LF (Functional Length) 3.375

LPR (Protruding Length) 4.426

LS (Length of Shank) 2.619

LU (Usable Length) 3.25
