Product Description
Technical Specifications Center Height 4
Overall Height 7-3/4 Horiz; 8 Vert
Weight 35 lbs

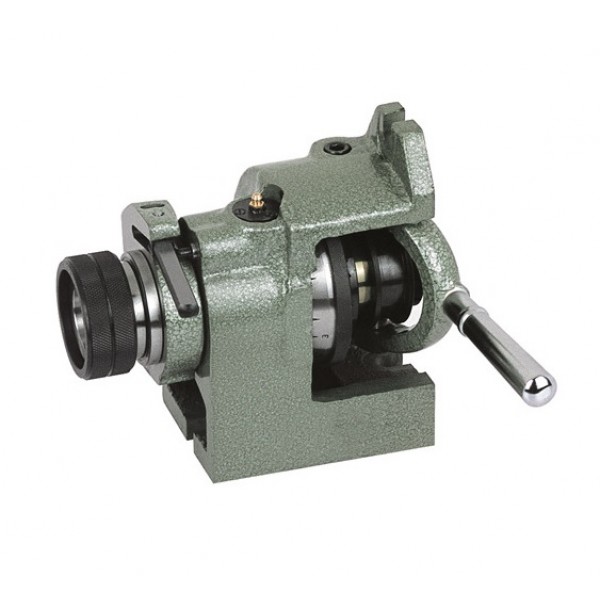

Type Horizontal/Vertical 5C Indexing Fixture
Collet Style 5C
Brand Name Quality Import
Base 4 x 8 Horiz; 4 x 6 Vert
◾A rapid indexing fixture for use with both Collets (5C 1-1/8 capacity) and lathe chucks
◾The latter may be fitted to the 2-1/4 -8 threaded spindle
◾These fixtures are designed to be mounted vertically or horizontally. Indexing is accomplished by releasing the spring loaded index pin lever
◾The spindle rotates freely until the next open space when the index pin engages again and locks the spindle.
Overall Height 7-3/4 Horiz; 8 Vert
Weight 35 lbs
Type Horizontal/Vertical 5C Indexing Fixture
Collet Style 5C
Brand Name Quality Import
Base 4 x 8 Horiz; 4 x 6 Vert
◾A rapid indexing fixture for use with both Collets (5C 1-1/8 capacity) and lathe chucks
◾The latter may be fitted to the 2-1/4 -8 threaded spindle
◾These fixtures are designed to be mounted vertically or horizontally. Indexing is accomplished by releasing the spring loaded index pin lever
◾The spindle rotates freely until the next open space when the index pin engages again and locks the spindle.
