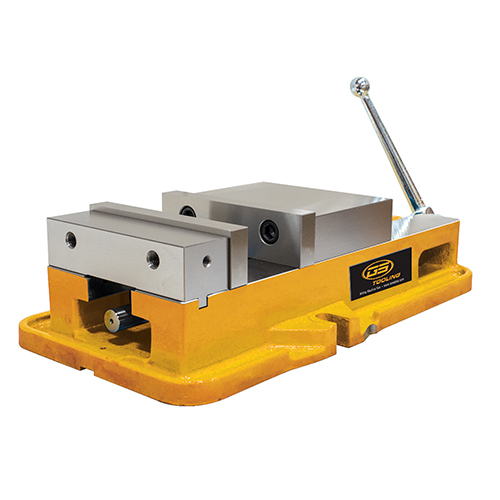

GS 8" X 10.0" PRECISION MILLING MACHINE VISE 327-300 GS810

GS810 8" Precision Milling Machine Vises

• Vises are Matched

• An integral key and large fasteners reduce deflection by 50%

• 4 jaw plate positions allow extra capacity with the jaw plates in the outside position

• The swivel base is graduated 360° in one degree increments

• Chip cover protects leadscrew from damage

• The other quality movable jaw does not lift off the bed, and the deflection of the stationary jaw is minimized



Model Jaw Width Opening Jaw Height Overall

GS810 8" 10.0" 2.25"

Length Height Width Weight

21.8" 5.55" 11.62" 158lb
