Product Description

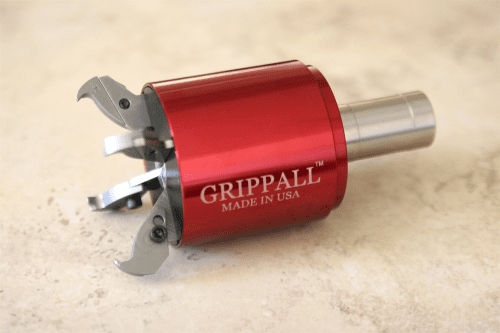

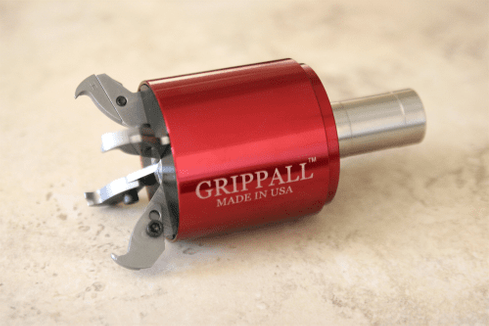

Self adjusting Coolant or Air Actuated Bar Puller
Standard with all GRIPPALL 1" shank Bar Pullers are a set of 4 hard steel fingers with screws.
Gripping Range;
1/8 to 2 1/2 first setting
3/4 to 3 1/8 second setting
15 p.s.i. enough to pull 200 lb. bar. Actuated by coolant or compressed air.
Why Use a Grippall CNC Bar Puller
They Provide a simple, inexpensive method for automating any CNC lathe.
Quality design, Made of Stainless steel and anodized air craft aluminum
Bar pullers dont use up valuable floor space
They are very easy to set up and use - no electrical interface required
Maintenance free operation
They can be easily moved from one machien to another
A wide gripping range is obtained from a very compact design
Use bar puller as a part picker so finished work piece does not get damaged
Costs much less then a bar feed
Also Stocking
2, 3, and 4 finger bar pullers, However if not requested 4 finger will be shipped
Gripping Range;
1/8 to 2 1/2 first setting
3/4 to 3 1/8 second setting
15 p.s.i. enough to pull 200 lb. bar. Actuated by coolant or compressed air.
Why Use a Grippall CNC Bar Puller
They Provide a simple, inexpensive method for automating any CNC lathe.
Quality design, Made of Stainless steel and anodized air craft aluminum
Bar pullers dont use up valuable floor space
They are very easy to set up and use - no electrical interface required
Maintenance free operation
They can be easily moved from one machien to another
A wide gripping range is obtained from a very compact design
Use bar puller as a part picker so finished work piece does not get damaged
Costs much less then a bar feed
Also Stocking
2, 3, and 4 finger bar pullers, However if not requested 4 finger will be shipped
