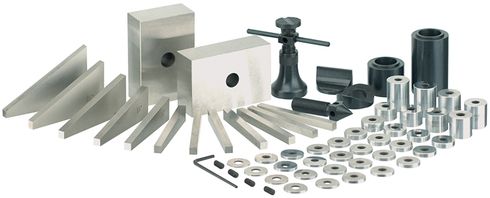

Fowler Machinist Set Up Kit 53-666-100

Fowler Machinist Set Up Kit 53-666-100

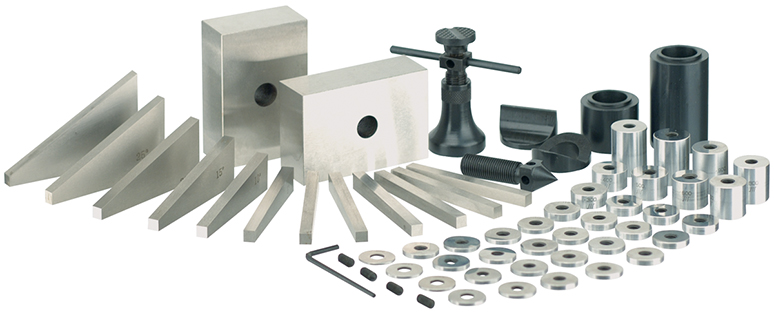

This set includes everything you need for part set up!



Set Includes:

1-2-3 Block Set:

• Tolerance: .0001" (squareness per inch).

• Dimensions: 1" x 2" x 3"

• Hardened to 58-60 Rockwell C

• Matched accuracy within .0002" per inch.



Jack Stand Set:

• Up to 1000 lbs.

• Range: 2.25" to 3.375"

• Jack base diameter: 1.25"

• 1" and 2" extension bases.

• Extensions may be combined.



Space Blocks:

• 3/4" diameter, 1/4"—28 ID thread

• Ground hardened and tapped.

• 4 connection screws included.

• Accuracy: ±.0001"



Angle Block Set:

• Precision ground.

• Accuracy: ±30 seconds.

• All blocks 3" long and .250" thick.

• Each set includes 1° thru 5° blocks in 1° increments and 5° thru 30° blocks in 5° increments as well as 1/4" and 1/2" blocks.

All sets come supplied with individual cases.
