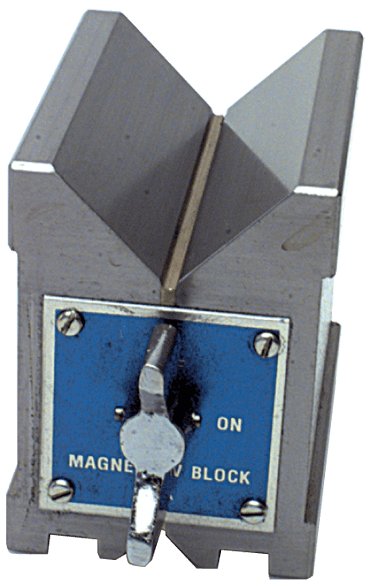

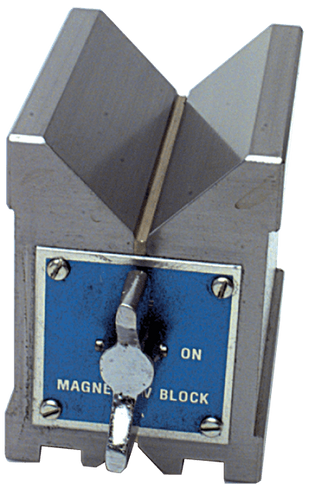

E934 - 2-3/4 x 3-3/4 x 4'' - Magnetic V-Block

Technical Specifications Model Number E934

Size 2-3/4 x 3-3/4 x 4

Weight 9.5 lbs

Type Magnetic V-Block

Number of Blocks 1

Brand Name Procheck

Holds both itself and the works on any flat ferrous surface, including a permanent magnet chuck (without energizing the chuck).

There are two vees, the smaller for workpiece up to 3" diameter, and the larger for workpieces up to 2" diameter.

The vees and faces are energized or de-energized simultaneously by turning the control handle

The vee block can be used either way; up or standing on end.
