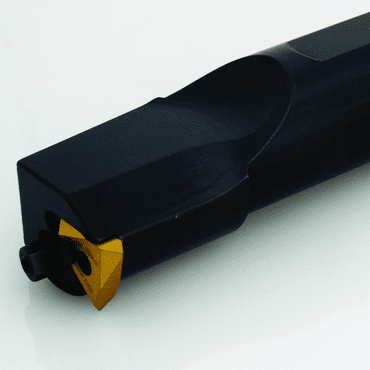

Dorian On-Edge Indexable Boring Bar S20U-MTHOR-4-C 1-1/4" SH; 14"OAL; RH 58308

Technical Specifications Use Insert TNMC43_ Right/Left Hand Right Insert Screw GTS2 Dimension F .8750 Clamp Screw XNS36 Clamp CL7 Wrench T20 Minimum Bore 1.8120 Maximum Bore .1900 Groove Depth .190 Overall Length 14.0000 Model Number S20U-MTHOR-4-C Shank Diameter 1.2500 Type Indexable Boring Bar Brand Name Dorian

ĦThreading and Grooving Internal Boring Bars (for Insert TNMC / TPMC) ĦSI-MTHOR Boring Bars
