Product Description
Dorian No. D2 BXA Turning, Facing & Boring Toolholder
USA MADE

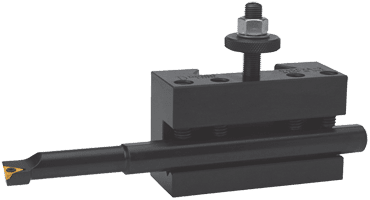

The “V” groove makes this holder more versatile so that it can hold either square shank toolholders or boring bars. Holds the tool close to the tool post to maximize rigidity when turning, facing, threading or boring. Fits industry standard toolposts.
Lathe Swing 13 to 15"
SDN Description D30BXA-2
Part No.73310101254
Size Decimal Inch:
A Bottom of Holder to Tool 0.437
T Tool Holder Capacity 1.000
C Length 3.250
D Width 1.500
E Height 2.250
F Back of Holder to Center of Post 1.115
G Back of Bar to Back of Holder .915
G1 Center of Bar to Back of Holder 1.205
