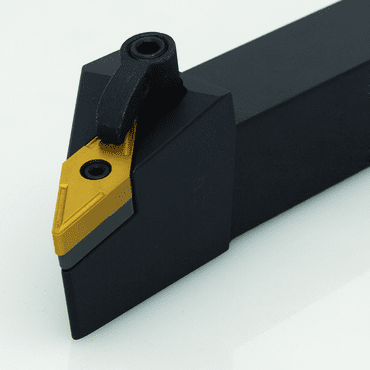

![Dorian MVJNR 16-3D - 1 x 1'' SH - RH - Turning Toolholder 51070 Dorian MVJNR 16-3D - 1 x 1'' SH - RH - Turning Toolholder 51070](https://s.turbifycdn.com/aah/yhst-46537691064911/dorian-mvjnr-16-3d-1-x-1-sh-rh-turning-toolholder-51070-88.png)
Product Description
Technical Specifications Lock Pin NL34L
Lead Angle 3
Right/Left Hand Right
IC .375
Head Width 1-1/4
Uses Insert Style VNM_33_
Gage Line 1.250
Seat Screw S34
Seat IVSN322
Clamp Screw XNS510
Clamp CL30
Wrench 5/64 & 5/32
Overall Length 6.00
Model Number MVJNR16-3D
Weight 1.8
Type Turning Toolholders
Head Length 1.750
Brand Name Dorian
Shank Size 1.000
MVJN R/L Toolholders Style JNegative 3 Side Cutting Edge Angle for negative 35 diamond VNMG inserts
MVJN R/L Toolholders Style JNegative 3 Side Cutting Edge Angle for negative 35 diamond VNMG inserts
