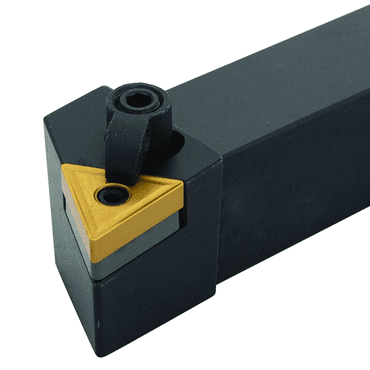

Dorian MTJNR 12-3B 3/4'' SH RH TNMG Toolholder 50894 73310150894

Dorian MTJNR 12-3B 3/4 x 3/4" SH RH TNMG Turning Toolholder 50894 73310150894



USA MADE

Style J3degree Side Cutting Edge Angle for negative triangle TNMG inserts

Rake Angle 7 Degrees



Technical Specifications

Lock Pin NL34L

Lead Angle 3degree

Right/Left Hand Right

IC .375

Head Width 1

Uses Insert Style TNM_32_

Gage Line 1.000

Seat Screw S34 NL-34L

Seat ITSN322

Clamp Screw XNS36

Clamp CL6

Shim ITSN-322

Wrench 5/64 & 3/32

Overall Length 4.50

Model Number MTJNR12-3B

Type Turning Toolholders

Mounting Style Multi-Lock

Head Length 1.000

Brand Name Dorian

Shank Size .750
