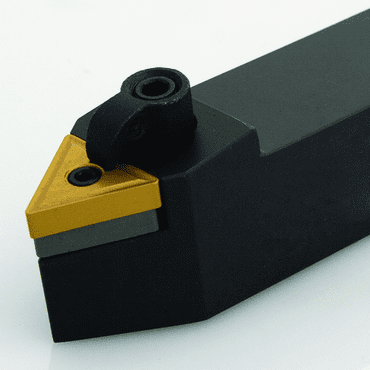

Dorian MTENN 10-3B 5/8 SH Neutral TNMG Toolholder 50692 73310150692

Dorian MTENN 10-3B 5/8 SH Neutral TNMG Turning Toolholder 50692 73310150692





MTEN N Toolholder Style E- 30-Degree Side Cutting Edge Angle for negative triangle TNM_ inserts

Technical Specifications

Hand Orientation Left Hand

Toolholder Style MTEN

Gage Insert TNM_322 332

Shank Size (A) 0.625

Shank Size (B) 0.625

Overall Length 4.50

Dimension (E) 1.125

Dimension (F) n/a

Seat / Shim Size ITSN-333 ITSN-322

Lock Pin NL-34L

Clamp Screw XNS-36

Clamp CL-6

Material Steel
