Product Description

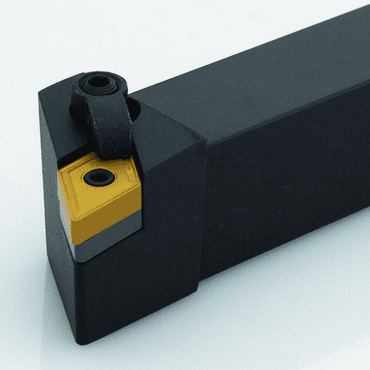

Dorian MDJNR 16-4D 1" Shank RH DNMG Turning Toolholder 50332 73310150332
USA MADE
Style J3 degree Side Cutting Edge Angle for negative 55° diamond DNMG inserts

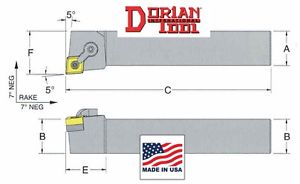

Technical Specifications
Lock Pin NL46
Lead Angle 3 degree
Right Hand
IC .500
Head Width 1-1/4
Uses Insert Style DNM_43_
Gage Line 1.250
Seat Screw S46
Seat IDSN433
Clamp Screw XNS36
Clamp CL7
Wrench 3/32
Overall Length 6.00
Model Number MDJNR16-4D
Description MDJNR/L 16-4D
Type Turning Toolholders
Head Length 1.250
Shank Size 1.000
