Product Description
Technical Specifications Lock Pin NL46
Use Insert CNM_43_
Lead Angle 5
Right/Left Hand Right
Seat Screw S46
Shim Seat ICSN433
Dimension F .7650
Clamp Screw XNS47
Clamp CL20
Minimum Bore 1.5300
Insert IC 1/2
Rake Angle 14
Overall Length 14.0000
Model Number S20U-MCLNR-4
Shank Diameter 1.2500

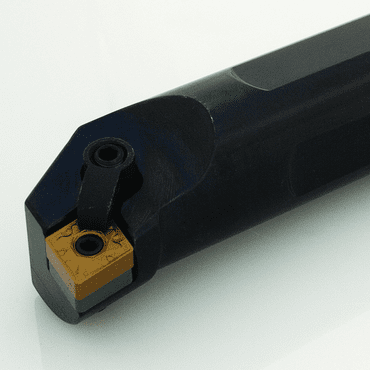

Type Indexable Boring Bar
Brand Name Dorian
‘S-MCLN R/L Boring Bars ‘Style LNegative 5 Side & End Cutting Edge Angle for negative 80 diamond CNMG inserts
‘S-MCLN R/L Boring Bars ‘Style LNegative 5 Side & End Cutting Edge Angle for negative 80 diamond CNMG inserts
