Product Description
Technical Specifications Lock Pin NL33L
Use Insert WNM_33_
Lead Angle 5
Right/Left Hand Left
Dimension F .5000
Clamp Screw DSHC7
Clamp DHC7
Minimum Bore 1.0000
Insert IC 3/8
Rake Angle 14
Overall Length 10.0000

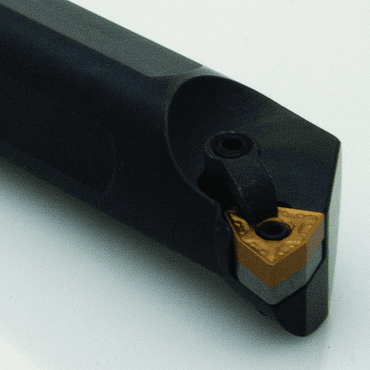

Model Number S12S-MWLNL-3
Shank Diameter .7500
Type Indexable Boring Bar
Brand Name Dorian
‘S-MWLN R/L Boring Bars ‘Style LNegative 5 End & Side Cutting Edge Angle for negative trigon WNMG inserts
