Product Description
Technical Specifications Lock Pin NL46
Use Insert TNM_43_
Lead Angle 0
Right/Left Hand Right
Seat Screw S46
Dimension F 1.2810
Seat ITSN433
Clamp Screw XNS59
Clamp CL9
Distance Across Flats 1.900
Minimum Bore 2.5620
Insert IC 1/2
Rake Angle 11
Overall Length 16.0000

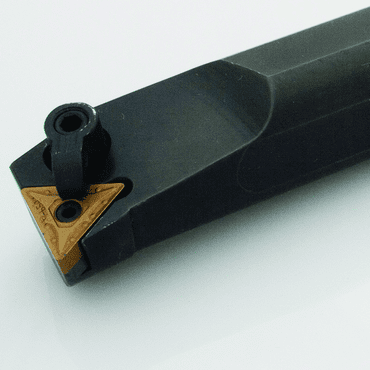

Model Number S32V-MTFNR-4
Shank Diameter 2.0000
Brand Name Dorian
‘Sytle F ‘0 End Cutting Edge Angle for negative triangle TNM_ inserts
‘Sytle F ‘0 End Cutting Edge Angle for negative triangle TNM_ inserts
