Product Description
Technical Specifications Lock Pin NL46
Use Insert DNM_43_
Lead Angle 3
Right/Left Hand Right
Seat Screw S46
Dimension F 1.0000
Seat IDSN433
Clamp Screw XNS59
Clamp CL12
Distance Across Flats 1.150
Minimum Bore 2.0000
Insert IC 1/2
Rake Angle 11
Overall Length 14.0000

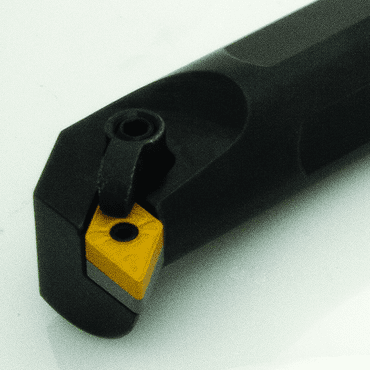

Model Number S20U-MDUNR-4
Shank Diameter 1.2500
Type Indexable Boring Bar
Brand Name Dorian
Style U Negative 3 End Cutting Edge Angle for negative 55 diamond DNM_ inserts
Style U Negative 3 End Cutting Edge Angle for negative 55 diamond DNM_ inserts
