Product Description

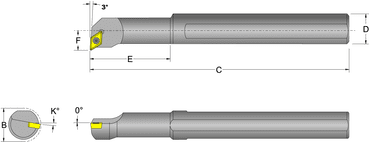

Technical Specifications Use Insert DC_T21.5_
Lead Angle 3
Right/Left Hand Right
Dimension F .5000
Wrench T7
Torx Screw TS25456M1/M2
Distance Across Flats .560
Minimum Bore .8400
Insert IC 1/4
Rake Angle 5
Overall Length 8.0000
Model Number S10R-SDUCR-2
Shank Diameter .6250
Brand Name Dorian
Depth of Cut 1.250
Style U Negative 3 End Cutting Edge Angle for 7 positive 55 diamond DC_T inserts
Style U Negative 3 End Cutting Edge Angle for 7 positive 55 diamond DC_T inserts
