Product Description
Technical Specifications Lock Pin NL44
Use Insert CNM_43_
Lead Angle 5
Right/Left Hand Left
Dimension F .5000
Seat ICSN433
Clamp Screw XNS47
Clamp CL20
Distance Across Flats .700
Minimum Bore 1.0000
Insert IC 1/2
Rake Angle 14
Overall Length 10.0000

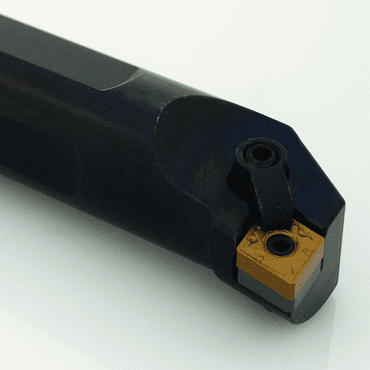

Model Number S12S-MCLNL-4
Shank Diameter .7500
Type Indexable Boring Bar
Brand Name Dorian
‘S-MCLN R/L Boring Bars ‘Style LNegative 5 Side & End Cutting Edge Angle for negative 80 diamond CNMG inserts
