Product Description
Technical Specifications Lock Pin NL44
Use Insert CNM_43_
Lead Angle 5
Right/Left Hand Right
Dimension F .6400
Clamp Screw XNS47
Clamp CL20
Minimum Bore 1.2800
Insert IC 1/2
Rake Angle 14
Overall Length 12.0000

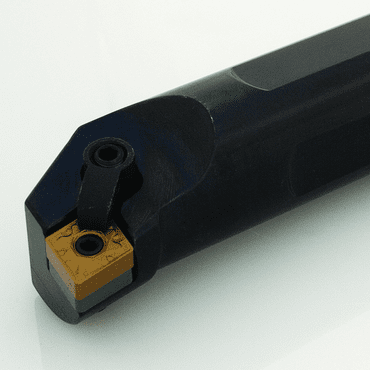

Model Number S16T-MCLNR-4
Shank Diameter 1.0000
Type Indexable Boring Bar
Brand Name Dorian
‘S-MCLN R/L Boring Bars ‘Style LNegative 5 Side & End Cutting Edge Angle for negative 80 diamond CNMG inserts
‘S-MCLN R/L Boring Bars ‘Style LNegative 5 Side & End Cutting Edge Angle for negative 80 diamond CNMG inserts
