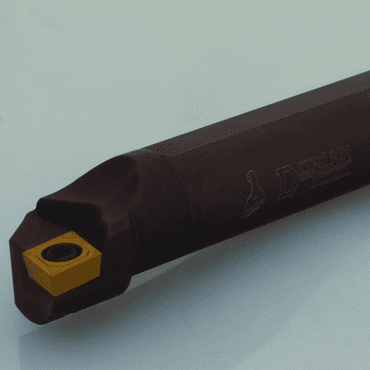

Dorian 1/4" Carbide Thru Coolant Boring Bar 59587 RH, -5‹ Style, For CD__-1.51_

Technical Specifications Use Insert CD..1.510.5 Lead Angle 7‹ Right/Left Hand Right Insert Screw TS-18.35-3M1 Dimension F .135 Coolant Inlet .040 Wrench T-6 Minimum Bore .2700 Insert IC 3/16 Overall Length 4.0000 Model Number E04H-SCLDR-1.5 Description 5‹ Lead Angle for 15‹ positive 80‹ diamond CDGW inserts Shank Diameter .250 Brand Name Dorian

‘Deep boring ‘Coolant thru system to improve chip evacuation
