Product Description

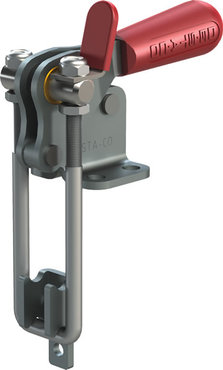

De-Sta-Co U Hook Pull Action Latch Clamp 344
Latch plate sold separately #374107
The clamp is mounted perpindicular to the latch surface.
Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels
Supplied with threaded U-hooks for easy adjustment
Patented Thumb Control Lever provides one-handed operation
Ergo handle
SPECIFICATIONS
Bar Style Latch
Base Type Flanged
Clamping Movement 2.50
Distance From Base to Handle 3.42
Distance From Base to Lever 3.10
Holding Capacity 2000 lbs
Hook Diameter M8
Hook Extension 1.66
Latch Plate Hole Diameter .34
Latch Plate Length 1.06
Maximum Distance 5.00
Mount Diameter .34
Mounting Length 1.25
Mounting Width 1.44
Overall Length 5.78
Range 0-1.26
