Product Description

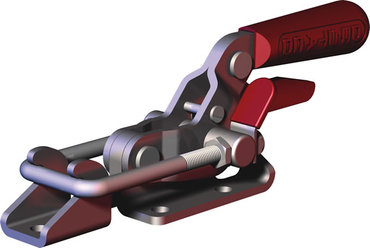

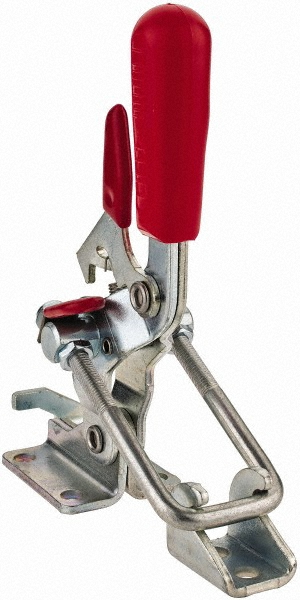

De-Sta-Co U Hook Pull Action Latch Clamp 341-R
Latch plates sold separately #375, 375R, 385
Threaded U-Bolt permits easy adjustment. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels
Patented Thumb Control Lever provides one-handed operation
Supplied with threaded U-hooks for easy adjustment
With Toggle Lock Plus
Ergo handle
SPECIFICATIONS
Bar Style Latch
Base Type Flanged
Clamping Movement 2.50
Distance From Surface to Clamp Point .94
Holding Capacity 2000 lbs
Hook Diameter M8
Hook Extension .45
Latch Plate Length .75
Latch Plate Overall Length 1.50
Mount Diameter .33
Mounting Length 1.63
Mounting Width 1.50
Overall Height 2.89
Overall Length 8.20
Range 0-0.76
