Product Description

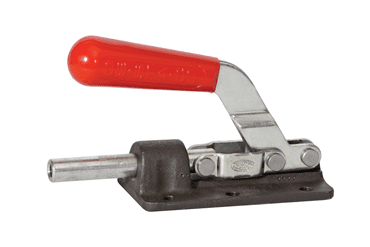

De-Sta-Co 607 Reverse Handlel Plunger Destaco Toggle Clamp
Straight Line Action Flanged Clamp
Ideal for clamping during soldering, gluing, locking, assembling, drilling, testing, positioning, and much more
Sizes and clamp range are distinguished by their compact design
Zinc plated, rivets made of stainless steel, with oil resistant Ergo handle
SPECIFICATIONS
Bar Style Plunger
Base Type Flanged
Distance From Surface to Plunger .69
Holding Capacity 800 lbs
Mount Diameter .28
Mounting Length 1.38
Mounting Width 1.63
Overall Height 3.56
Overall Length 6.01
Plunger Height .69
Plunger Thread 5/16-18
Plunger Travel 1.63
