Product Description

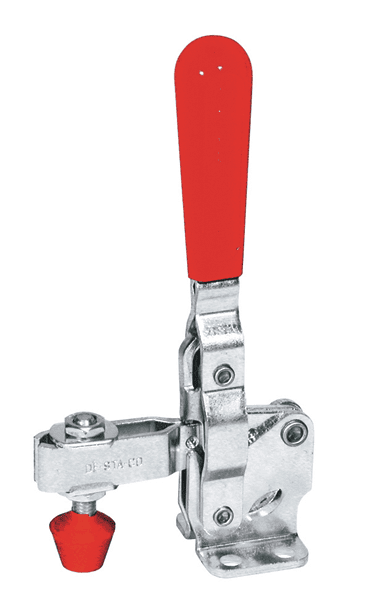

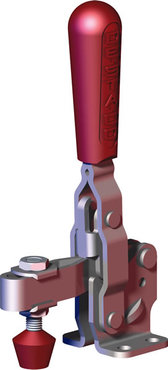

MODEL: 207-U
Category: Vertical Hold-Down Clamps
Product Details
The world's most widely used toggle clamp.
Has the most features and options of any series in our toggle clamp line.
Supplied with neoprene spindle.
Ergonomic handle grip
Maxmum Holding Capacity (N) 1,670
Holding Capacity (lbsf) 375
Clamp Arm Length (mm) 54.4
Clamp Arm Length (in) 2.140
Height Under Clamp Arm (mm) 31.8
Height Under Clamp Arm (in) 1.250
Maxmum Holding Capacity (N) 1,670
Clamp Bar Opening (+10°) (degrees) 99
Handle Opening (+10°) 57
Standard Material Steel
Base Mounting Style flanged
Clamp Arm Style u-bar
Handle Vertical
SPECIFICATIONS
Accessories 225208-M M8 x 1.25
Bar Style U-Shape
Base Type Flanged
Base Width 1.75
Distance From Base to Clamp Bar 2.15
Mount Diameter .28
Mounting Length .75
Mounting Width 1.25
Overall Height 6.89
Overall Length 3.68
Spindle Assembly M8
