Product Description

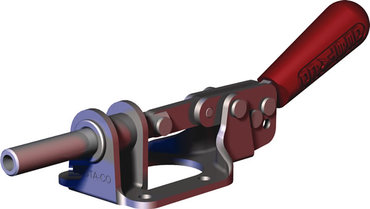

De-Sta-Co Straight Line Action Toggle Clamp 615
This model works with a reverse action. The plunger moves forward when the handle moves downward
Reverse handle action – plunger locks into extended position as the handle is moved downward
Ergo handle
SPECIFICATIONS
Bar Style Plunger
Base Type Flanged
Distance From Surface to Plunger .97
Holding Capacity 300 lbs
Mount Diameter .22
Mounting Length 1.63
Mounting Width 1.63
Overall Height 2.35
Overall Length 8.51
Plunger Height .97
Plunger Thread 5/16-18
Plunger Travel .97
Style Reverse Handle Action
