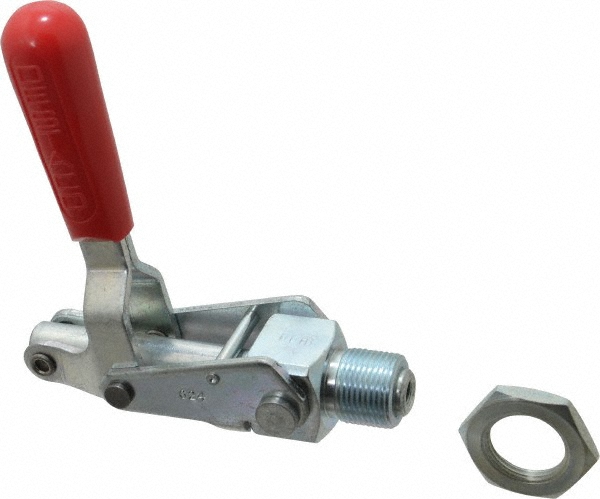

De-Sta-Co Straight Line Action Toggle Clamp 624

De-Sta-Co Straight Line Action Toggle Clamp 624



Through-hole mounted straight line action clamp

Versatile and compact

Locks in both extended and retracted position

Ergonomic handle grip



SPECIFICATIONS

Bar Style Plunger

Base Type Flanged

Body Size 1-14

Body Thread Size 1-14

Body Width 1.81

Distance From Front Body to End Plunger 3.62

Distance From Surface to Plunger .75

Holding Capacity 700 lbs

Model No. 624

Overall Height 5.60

Overall Length 6.68

Plunger Diameter .62

Plunger Height .75

Plunger Length 3.24

Plunger Length Extended 3.24

Plunger Travel 2.63
