Product Description

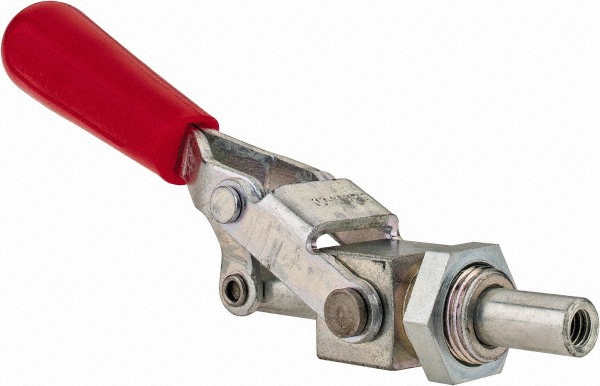

De-Sta-Co Straight Line Action Destaco Toggle Clamp 604
Through-hole mounted straight line action clamp
Versatile and compact
Locks in both extended and retracted position
Stainless steel
Ergonomic handle grip
Versatile and compact straight line action clamps
Threaded body for through hole mounting
SPECIFICATIONS
Bar Style Plunger
Base Type Flanged
Body Size 3/4-16
Body Thread Size 3/4-16
Body Width 1.30
Distance From Front Body to End Plunger 2.18
Distance From Surface to Plunger .50
Holding Capacity 300 lbs
Model No. 604
Overall Height 4.16
Overall Length 4.95
Overall Width 1.30
Plunger Diameter .44
Plunger Height .50
Plunger Length 1.82
Plunger Length Extended 1.82
Plunger Travel 1.50
