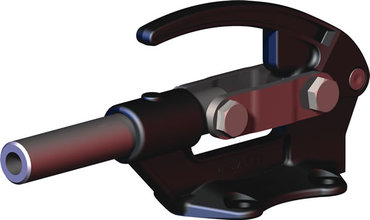

De-Sta-Co Straight Line Action Clamp 650

De-Sta-Co Straight Line Action Clamp 650



Largest holding capacity of the straight line action series

For heavy-duty push/pull clamping

Longest stroke for DESTACO straight line action clamps

Locks in both extended and retracted position

Forged steel base and handle



SPECIFICATIONS

Bar Style Plunger

Base Type Flanged

Distance From Surface to Plunger 2.25

Holding Capacity 16000 lbs

Mount Diameter .41

Mounting Length 2.75

Mounting Width 2.25

Overall Height 4.87

Overall Length 11.16

Plunger Height 2.25

Plunger Thread 5/8-11

Plunger Travel 3.00

Style Reverse Handle Action
