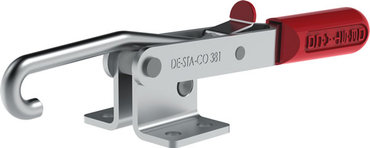

De-Sta-Co J Hook Pull Action Latch Clamp 381

De-Sta-Co J Hook Pull Action Latch Clamp 381



Our line of pull action latch clamps is excellent for many types of latching operations.

The pull bar is threaded for easy adjustment.

Supplied with threaded J-Hook for easy adjustment

Patented Thumb Control Lever provides one-handed operation

Ergo handle



SPECIFICATIONS

Bar Style Hook

Base Type Flanged

Clamping Movement 6.13

Distance From Surface to Clamp Point 1.81

Holding Capacity 1000 lbs

Hook Diameter M12

Hook Dimension .62

Hook Extension 3.13

Mount Diameter .41

Mounting Length 1.13

Mounting Width 2.37

Overall Height 2.90

Overall Length 13.45

Range 0-0.93
