Product Description

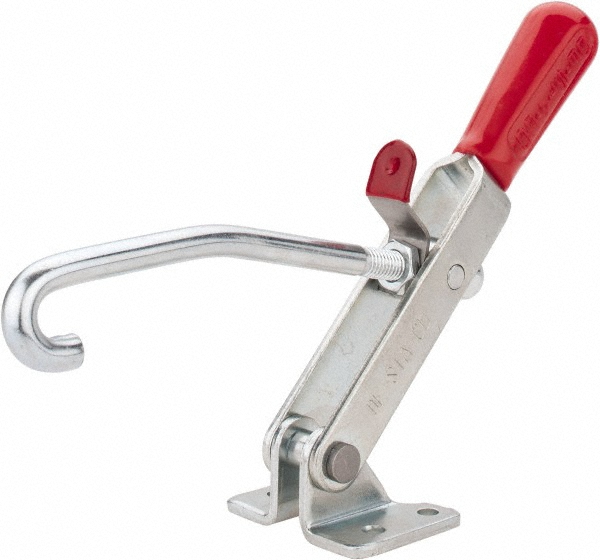

De-Sta-Co J Hook Pull Action Latch Clamp 351
Our line of pull action latch clamps is excellent for many types of latching operations.
The pull bar is threaded for easy adjustment.
Supplied with threaded J-Hook for easy adjustment Patented Thumb Control Lever provides one-handed operation
Ergo handle
SPECIFICATIONS
Bar Style Hook
Base Type Flanged
Clamping Movement 4.00
Distance From Surface to Clamp Point .75
Holding Capacity 375 lbs
Hook Diameter M8
Hook Dimension .38
Hook Extension 2.18
Mount Diameter .22
Mounting Length .75
Mounting Width 1.37
Overall Height 1.85
Overall Length 8.86
Range 0-0.43
