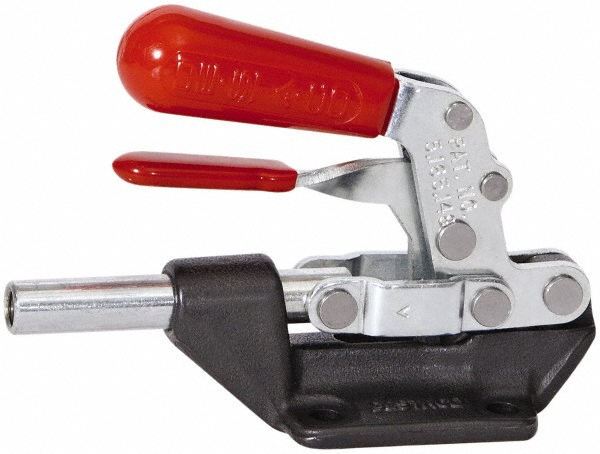

De-Sta-Co 603-R Straight Line Toggle Clamp

De-Sta-Co 603-R Straight Line Toggle Clamp



Large holding capacity in a small package

Large holding capacity for its size

Locks in both extended and retracted position

With Toggle Lock Plus

Ergo handle



SPECIFICATIONS

Bar Style Plunger

Base Type Flanged

Distance From Surface to Plunger .97

Holding Capacity 600 lbs

Mount Diameter .27

Mounting Length 1.44

Mounting Width 1.31

Overall Height 3.43

Overall Length 4.73

Plunger Height .97

Plunger Thread 5/16-18

Plunger Travel 1.25

Side Mounting Pattern Length .58
