Product Description

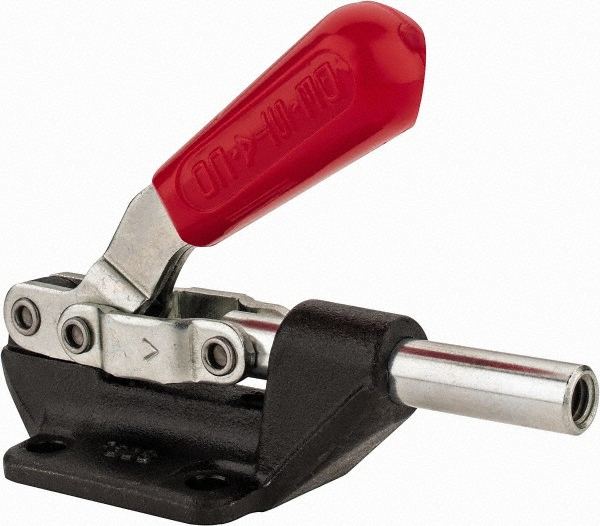

De-Sta-Co 603 Reverse Handle Action Plunger Destaco Toggle Clamp
Straight Line Action Flanged Clamp
Ideal for clamping during soldering, gluing, locking, assembling, drilling, testing, positioning, and much more
Sizes and clamp range are distinguished by their compact design
Many versions locking both extended and retracted positions
Zinc plated, rivets made of stainless steel, with oil resistant Ergo handle
SPECIFICATIONS
Bar Style Plunger
Base Type Flanged
Distance From Surface to Plunger .97
Holding Capacity 600 lbs
Mount Diameter .27
Mounting Length 1.44
Mounting Width 1.31
Overall Height 3.43
Overall Length 4.73
Plunger Height .97
Plunger Thread 5/16-18
Plunger Travel 1.25
Side Mounting Pattern Length .58
Style Straight Line
