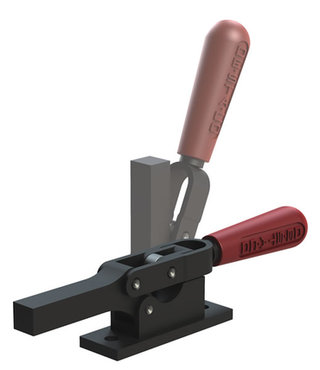

De-Sta-Co 5305 Horizontal Hold Down Destaco Toggle Clamp

De-Sta-Co 5305 Horizontal Hold Down Destaco Toggle Clamp

These low profile heavy duty feature robust contruction for extended life and durability.

Solid clamping bars may be modified to suit your application.

Three sizes with multiple mounting options as well as Toggle Lock Plus for added safety (-R versions).

High strength forged alloy steel clamping arm

Hardened steel pivot pins and bushings for long life

Ergo handle

Black oxide finish



Maxmum Holding Capacity (N) 2,670

Holding Capacity (lbsf) 600

Opening Angle (deg) 90

Height Under Clamp Arm (mm) 20.6

Height Under Clamp Arm (in) 0.810

Maxmum Holding Capacity (N) 2,670

Clamp Bar Opening (+10°) (degrees) 90

Handle Opening (+10°) 69

Standard Material Steel

Handle Horizonal



SPECIFICATIONS

Bar Style Solid

Base Length 3.15

Base Type Flanged

Base Width .98

Clamp Arm Length 2.12

Mount Diameter .35

Mounting Length 2.50

Overall Height 1.51

Overall Length 8.36

Overall Width .98
