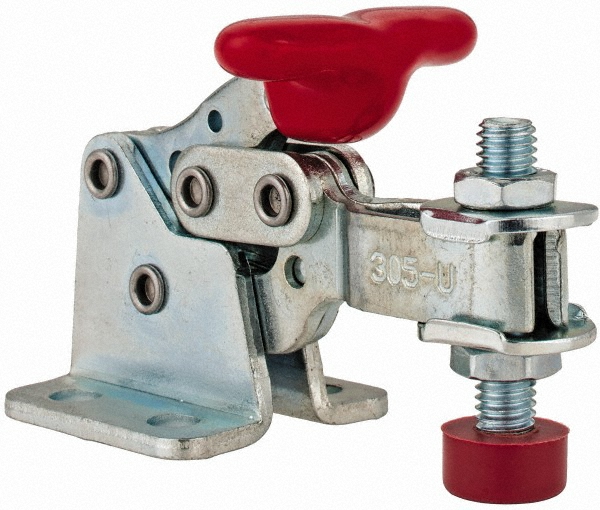

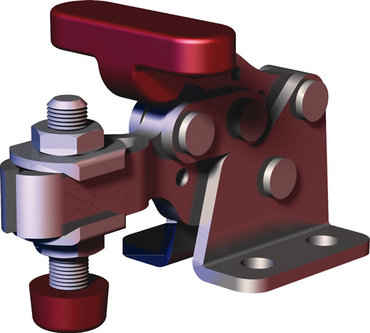

De-Sta-Co 305-U Horizontal Hold Down Toggle Clamp

De-Sta-Co 305-U Horizontal Hold Down Toggle Clamp



Low silhouette hold down clamp features a handle that can be operated from either side or from behind

Up to 150 lb. (670 N) capacity

Supplied with neoprene Ergo handle spindle

Stainless steel models available



Maxmum Holding Capacity (N) 670

Holding Capacity (lbsf) 150

Clamp Arm Length (mm) 30.2

Clamp Arm Length (in) 1.190

Height Under Clamp Arm (mm) 12.2

Height Under Clamp Arm (in) 0.480

Maxmum Holding Capacity (N) 670

Clamp Bar Opening (+10°) (degrees) 90

Handle Opening (+10°) 170

Standard Material Steel

Base Mounting Style flanged

Clamp Arm Style u-bar

Handle Horizonal



SPECIFICATIONS

Distance From Base to Mounting Hole .25

Fits Spindle Diameter #10

Mounting Length .53

Mounting Width .63

Overall Height 1.43

Overall Length 2.21

Spindle Assembly (MA50-305208-M) 5mm-0.8 x 29mm Flat Tip
