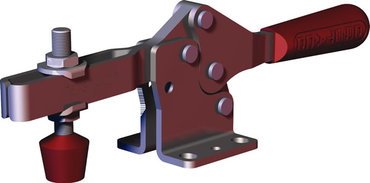

De-Sta-Co 237-U Horizontal Destaco Toggle Clamp

De-Sta-Co 237-U Horizontal Destaco Toggle Clamp

Unique design gives greater hand clearance between the bar and handle.

Large handle clearance in open position

Clamp supplied with neoprene spindle

Low profile

Ergo handle



Maxmum Holding Capacity (N) 3,340

Holding Capacity (lbsf) 750

Clamp Arm Length (mm) 101.5

Clamp Arm Length (in) 4.000

Height Under Clamp Arm (mm) 42.3

Height Under Clamp Arm (in) 1.670

Maxmum Holding Capacity (N) 3,340

Clamp Bar Opening (+10°) (degrees) 93

Handle Opening (+10°) 59

Standard Material Steel

Base Mounting Style flanged

Clamp Arm Style u-bar

Handle Horizonal



SPECIFICATIONS

Centerline Distance .08

Distance From Base to Mounting Hole .31

Fits Spindle Diameter 3/8

Mounting Length 1.61

Mounting Width 1.69

Overall Height 3.18

Overall Length 11.00

Spindle Assembly (MA50-240208-M) 10mm-1.50 x 79mm Flat Tip
