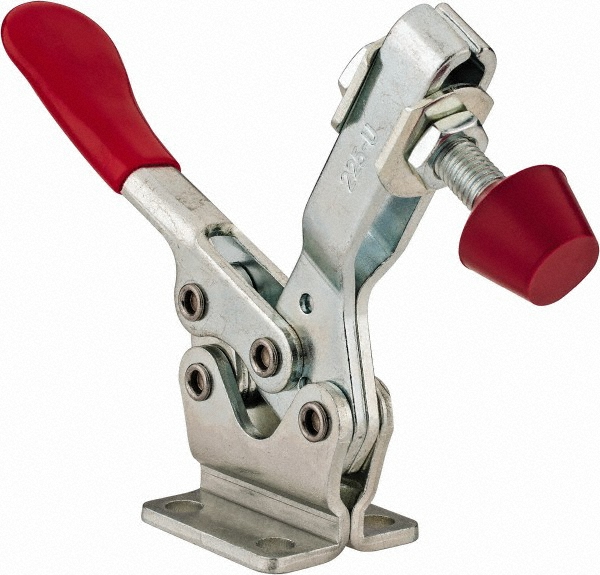

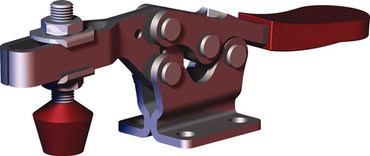

De-Sta-Co 225-U Horizontal Hold Down DESTACO Toggle Clamp
225-U
Horizontal Clamp
Used in drilling, testing, gluing and other processing applications.
Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry.
Minimum overhead clearance is required for this low profile clamp
Clamp supplied with Ergo handle neoprene spindle
Low profile
Maxmum Holding Capacity (N) 2,220
Holding Capacity (lbsf) 500
Clamp Arm Length (mm) 68.3
Clamp Arm Length (in) 2.690
Height Under Clamp Arm (mm) 33.3
Height Under Clamp Arm (in) 1.310
Maxmum Holding Capacity (N) 2,220
Clamp Bar Opening (+10°) (degrees) 92
Handle Opening (+10°) 70
Standard Material Steel
Handle Horizonal
SPECIFICATIONS
Bar Style U-Shape
Base Type Flanged
Distance From Base to Mounting Hole .25
Fits Spindle Diameter 5/16
Mounting Length 1.00
Mounting Width .88
Overall Height 1.84
Overall Length 6.81
Spindle Assembly (225208-M) 8mm-1.25 x 53mm Flat Tip
Style Horizontal Handle Hold Down
