Product Description

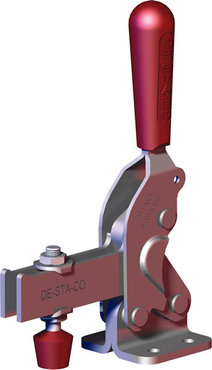

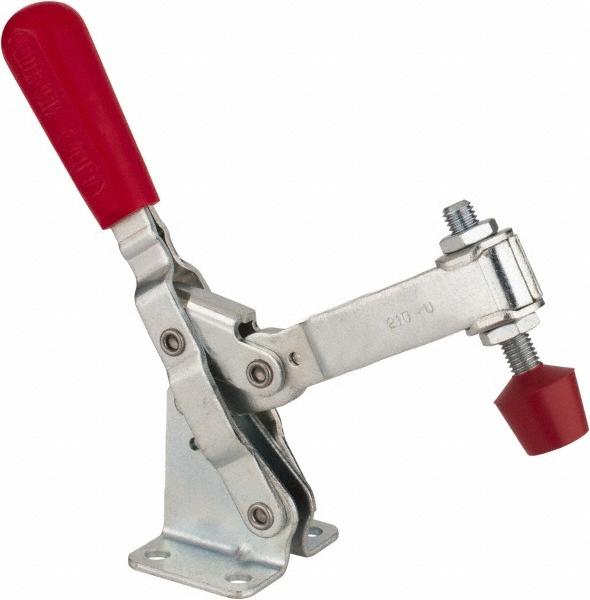

De-Sta-Co 210-U Vertical Hold Down U-Shape Style Toggle Clamp
MODEL: 210-U
Mid-range capacity. Ideal for use in a wide variety of applications.
Supplied with neoprene spindle.
Ergonomic handle grip
Maxmum Holding Capacity (N) 2,670
Holding Capacity (lbsf) 600
Clamp Arm Length (mm) 92.2
Clamp Arm Length (in) 3.630
Height Under Clamp Arm (mm) 42.4
Height Under Clamp Arm (in) 1.670
Maxmum Holding Capacity (N) 2,670
Available Yes
Standard Material Steel
Base Mounting Style flanged
Clamp Arm Style u-bar
Handle Vertical
SPECIFICATIONS
Accessories 240208-M M10 x 1.50
Bar Style U-Shape
Base Type Flanged
Base Width 2.53
Distance From Base to Clamp Bar 3.63
Mount Diameter .33
Mounting Length 1.25
Mounting Width 1.78
Overall Height 8.15
Overall Length 5.54
Spindle Assembly M10
MODEL: 210-U
Mid-range capacity. Ideal for use in a wide variety of applications.
Supplied with neoprene spindle.
Ergonomic handle grip
Maxmum Holding Capacity (N) 2,670
Holding Capacity (lbsf) 600
Clamp Arm Length (mm) 92.2
Clamp Arm Length (in) 3.630
Height Under Clamp Arm (mm) 42.4
Height Under Clamp Arm (in) 1.670
Maxmum Holding Capacity (N) 2,670
Available Yes
Standard Material Steel
Base Mounting Style flanged
Clamp Arm Style u-bar
Handle Vertical
SPECIFICATIONS
Accessories 240208-M M10 x 1.50
Bar Style U-Shape
Base Type Flanged
Base Width 2.53
Distance From Base to Clamp Bar 3.63
Mount Diameter .33
Mounting Length 1.25
Mounting Width 1.78
Overall Height 8.15
Overall Length 5.54
Spindle Assembly M10
