Product Description

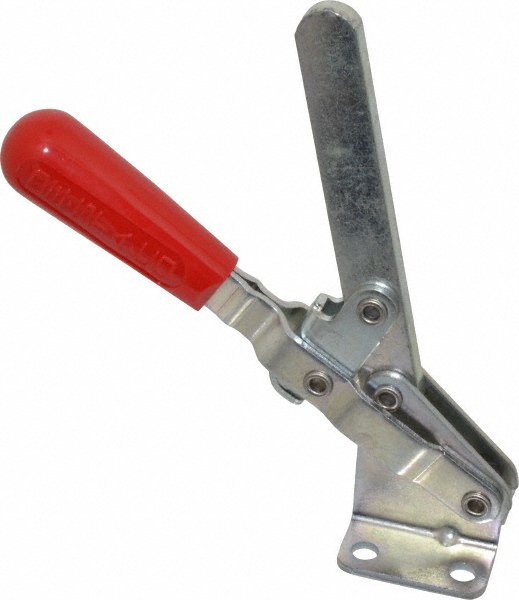

De-Sta-Co 210-S Vertical Destaco Toggle Clamp
Mid-range capacity. Ideal for use in a wide variety of applications.
Supplied with neoprene spindle.
Ergonomic handle grip
Maxmum Holding Capacity (N) 3,340
Holding Capacity (lbsf) 750
Clamp Arm Length (mm) 90.9
Clamp Arm Length (in) 5.470
Height Under Clamp Arm (mm) 42.4
Height Under Clamp Arm (in) 1.670
Maxmum Holding Capacity (N) 3,340
Clamp Bar Opening (+10°) (degrees) 103
Handle Opening (+10°) 58
Standard Material Steel
Base Mounting Style flanged
Clamp Arm Style solid bar
Handle Vertical
SPECIFICATIONS
Base Width 2.53
Distance From Base to Clamp Bar 3.63
Mount Diameter .33
Mounting Length 1.25
Mounting Width 1.78
Overall Height 8.15
Overall Length 5.53
Spindle Assembly M12
